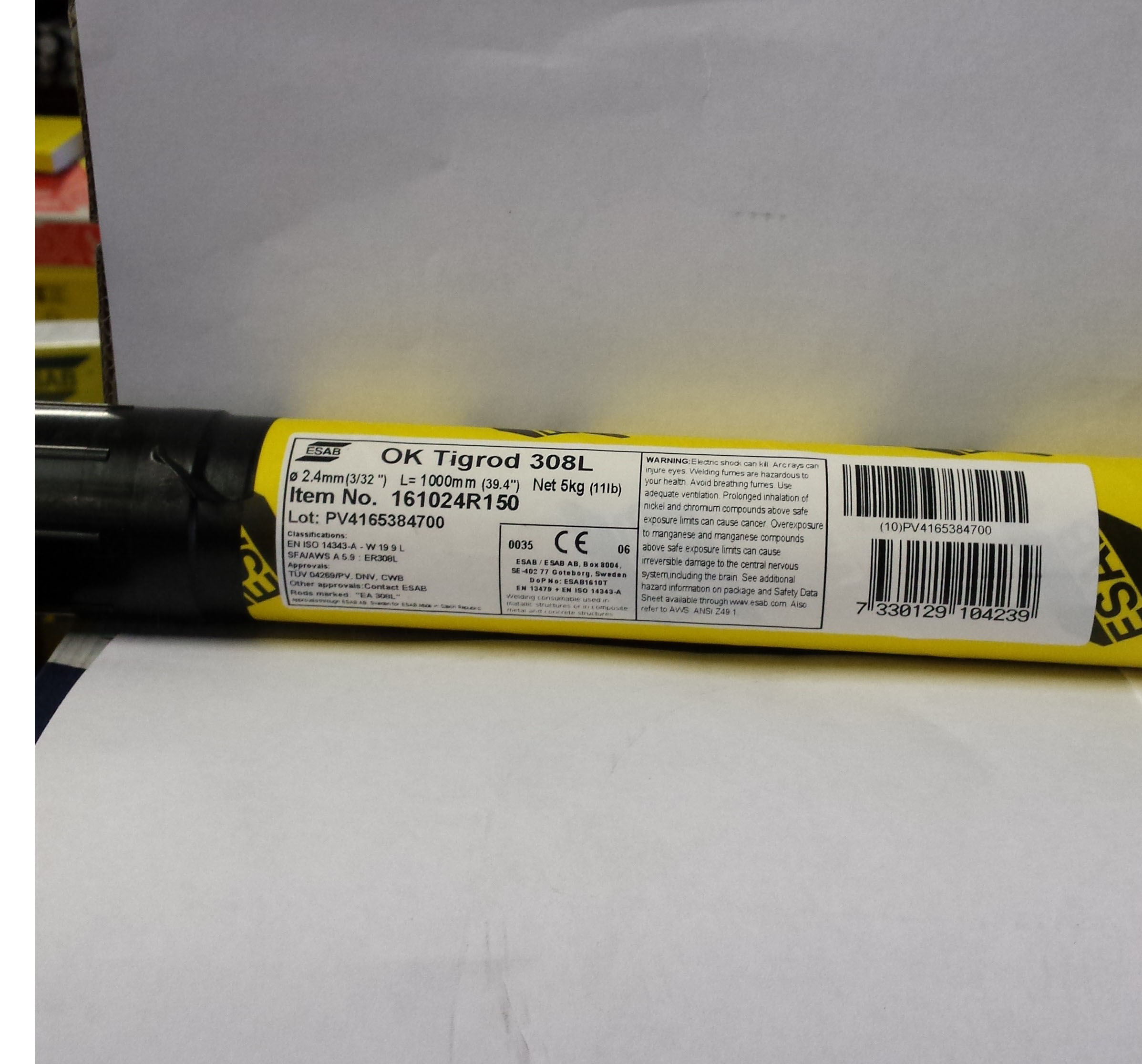

ESAB 308LSi Tig Wire

From 18.90 Excl. VAT

308 Grade corrosion resistant TIG filler wire.

Approvals incl. CE, BD, DNV.,



SKU: Tig308 Category: Brand:
ESAB

Bare, corrosion-resistant, chromium-nickel rods for welding austenitic chromium-nickel alloys of the 18% Cr-8% Ni type.

OK Tigrod 308LSi has good general corrosion resistance. The alloy has a low carbon content which makes it particularly recommended when there is a risk of inter-granular corrosion. The higher silicon content improves the welding properties such as wetting. The alloy is widely used in the chemical and food-processing industries, as well as for pipes, tubes and boilers.
Welding current
DC(-)

Classifications Approvals Typical all weld metal composition, % Typical mech. properties all weld metal
EN ISO 14343-A
W 19 9 LSi
SFA/AWS A5.9
ER308LSi
Werkstoffnummer
~1.4316
CE EN 13479
DB 43.039.11
DNV 308L (-196°C)
NAKS/HAKC CZ
VdTÜV 05335
C <0,03
Si 0,8
Mn 1,8
Cr 20,3
Ni 10,0
Mo <0,3
Cu <0,3
Wire composition
Yield stress, MPa
480
Tensile strength, MPa
625
Elongation, %
37
Elongation, %
37

Charpy V
Test temps, °C Impact values, J
+20 170
-60 150
-110 140
-196 75

Weight N/A
Size

1.6mm, 2.4mm, 3.2mm

Lot

1kg, 5kg Tube
