01 8366142
Product Description
Description

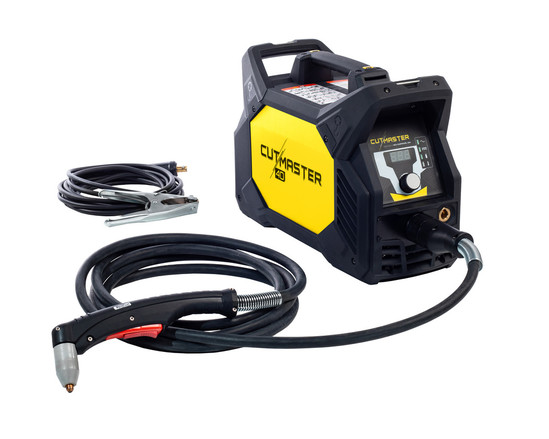

The Cutmaster® 40 with SL60™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 40 with SL60 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application.
Features
-Built for portability and durability with the integral multi-handle design
-40% Duty Cycle depending on application. Automatic voltage input detection from 110-240V and will automatically set the max output. 27 amps for 110 and 40 amps for 200-240V
-Industrial SL60 1Torch with ATC® (Advanced Torch Connector)
-Up to 12 mm recommended pierce and cut capacity with maximum sever of 25 mm
-Cutmaster Black Series electrode included for up to 60% longer life of consumable parts

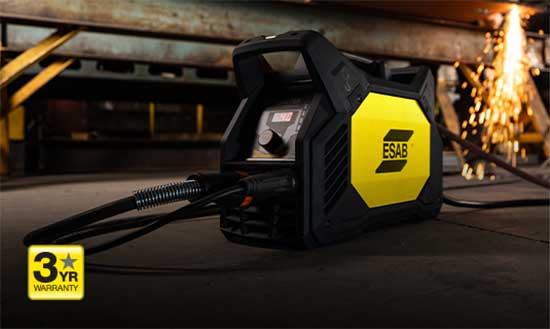

-Industry leading 3-year warranty on power supply and 1-year warranty on torch
Maximum portability.

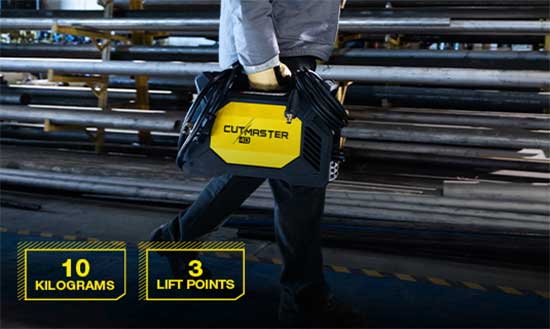

Cutmaster 40 features an all-new ergonomic design for the best portability in its class – without sacrificing performance. It weighs only 10 kg, with multiple handles and carrying points that help it feel even lighter.
Incredible performance.
Cutmaster 40 has remarkable power for a machine of its size. The legendary 1Torch™ allows for a best-in-class 12 mm pierce and cut capacity and an insane 16 mm max sever. With an extraordinary 35% duty cycle at 40 A, thanks to all-new hybrid cooling technology, your hands will give up before this machine does.
Greater flexibility.

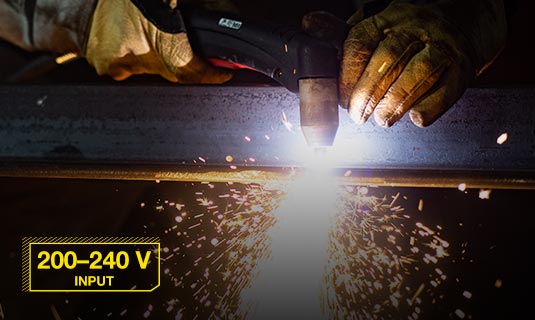

With an incredible arc stretch, Cutmaster 40 can be used in unusual cutting positions while maintaining cut quality. It comes with a complete range of consumables out of the box for cutting and gouging, and it runs on 200-240 V power with automatic amperage adjustment.
Serious durability.

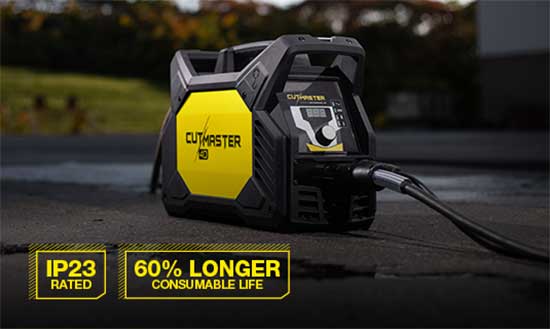

We put Cutmaster 40 in proven industrial-grade housing to ensure it can take a battering and keep performing. With an IP23 all-weather rating, Cutmaster 40 is ready to work where you need it to – rain or shine, day in and day out. Cutmaster 40 also comes with new Black Series consumables that last up to 60% longer before needing to be replaced.
Industry-leading protection.
Cutmaster 40 is backed by ESAB’s industry-leading service and support, which means if you do need help, you will be protected by the most comprehensive warranty in the business.
Industry
-Automotive Bodies
-Industrial and General Fabrication
-General Manufacturing
-HVAC
-Repair and Maintenance
-Training Schools
Specifications
Amperage Output 15 – 40 A, continuously adjustable
Recommended Generator Size 8.0 kW
Open Circuit Voltage (OCV) 280 V
Input Voltage 200-240 VAC +/-10%, 50/60Hz, 1ph
Rated Duty Cycle
35% @ 40 A
60% @ 30 A
100% @ 20 A
Amperage Draw *
I1eff : 15.5 A @230V
* 26A @ 230V
Input Power Cable 2.7 m length, 2.5mm² input cable. 16A plug
Work Lead with Ground Clamp 4 m work cable with 50 mm connection
Gas Requirements Compressed air
Operating Temperature Range 0° – 50° C
Operating Input Air Pressure Range 6.2 – 8.6 bar
Min Air Flow Requirements (cutting & gouging) 142-235 l/min
Recommended Cut up to 12 mm
Maximum Sever up to 16 mm
Pierce Rating 12 mm
SL60 Torch Duty Cycle 100% at 40 A @ 189 l/min air flow
Torches – for use with the Cutmaster 40
SL60 1Torch (supplied)
SL60QD 1Torch
Dimensions L x W x H 460 x 200 x 320 mm
Weight 10 kg
* at Maximum Cut Capacity
Cutting Specifications
Plate Thickness Recommended Cut Speed
1 mm- 7670 mm/min
2 mm- 6985 mm/min
4 mm- 2667 mm/min
5 mm- 1778 mm/min
6 mm- 762 mm/min
9 mm- 508 mm/min
13 mm- 254 mm/min
