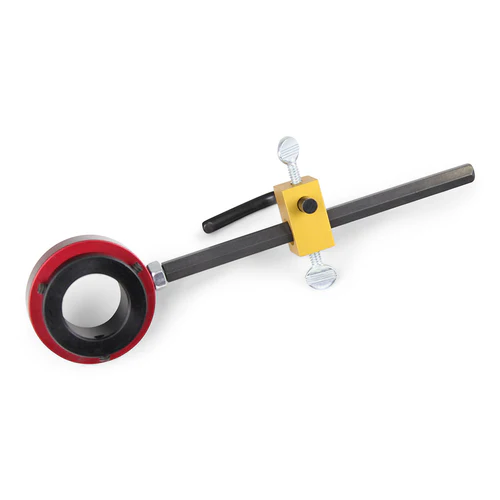

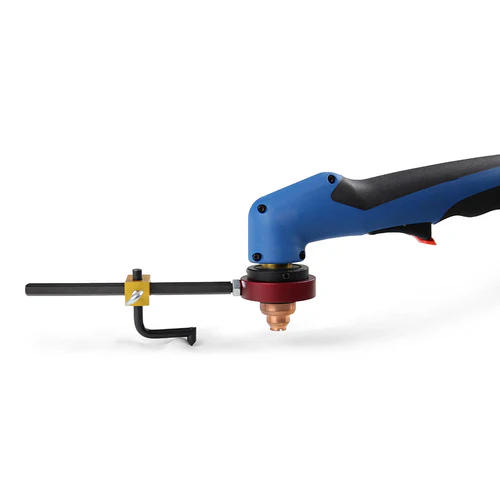

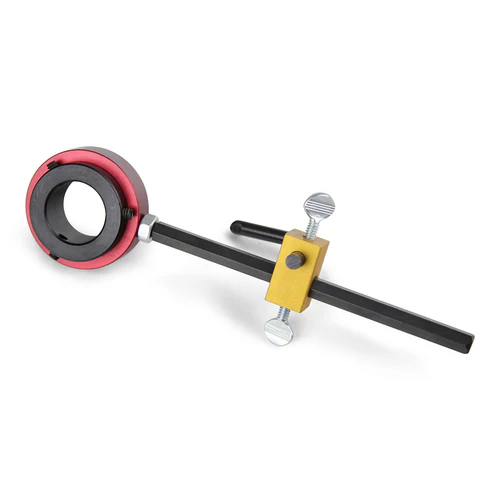

The Flange Wizard Plasma Wiz assists in cutting holes from 5/8″ to 8″ in diameter. The tool is designed to make hole cutting jobs in steel and nonferrous metals a snap with your plasma torch.

• Pick the busing that fits your plasma torch head, adjust the pivot pin for proper height, move it along the hex bar to set your radius and lock it in place with the thumb screw.
• A center punch mark will hold pointed pivot pin in place.
• The tool gives you a steady hand for cutting precise circles.

Choosing the Correct Bushing Size

Frequently Asked Questions

Question:

Will it fit my Plasma Torch?

Answer:

YES! But you must order the proper bushing to fit your torch.

Gasweld note- 27mm bushing fits the common hypertherm torches powermax 45 and 85

32.4mm bushing fits Esab/ Thermal dynamics torches

Question:

What size holes will it cut?

Answer:

From 5/8″ to 8″ diameter.

Question:

Will it cut straight lines?

Answer:

NO! It is designed to cut circles only. If you need to cut straight lines, you should order the PG-601.

Question:

What is part number and length of hex arm?

Answer:

Part number 3311-S is the short 5/16″ Hex Arm. It is 5-1/2″ long.
