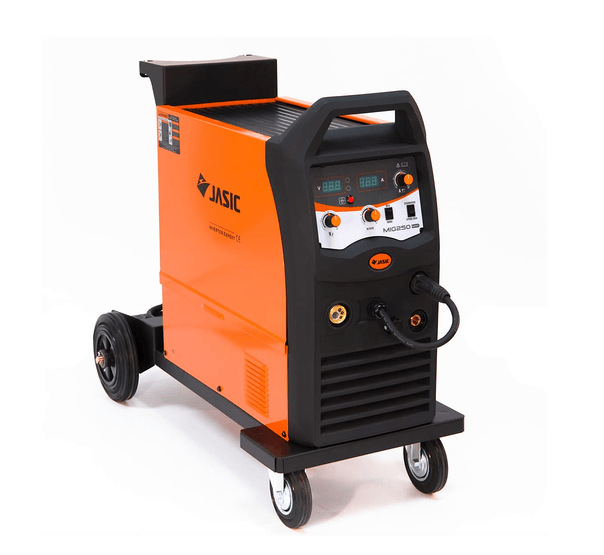

Jasic MIG 250 Compact Inverter Welder

1,395.45 Excl. VAT

Categories: , , Brand:


The all-new Jasic MIG 250 MIG Compact inverter welder is equipped with powerful IGBT components, a digital A/V display and the option to weld in MMA (Stick) mode.

The welding inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.

This high quality single-phase MIG inverter delivers an impressive 250 amps at 35% duty cycle, making the MIG 250 an excellent choice for medium duty fabrication work

Package includes the Jasic Inverter power source, MIG welding torch, Earth return lead, Gas hose and regulator, Operating instructions. The Jasic 5 year extended warranty gives extra piece of mind


-High performance compact MIG MAG/MMA inverter

-Advanced control circuitry

-Digital A/V display

-High duty cycle

-Suitable for 0.6/0.8/1.0mm wires

-Stable and reliable arc

-Burn back control

-Spool gun interface

-Wire inching feature

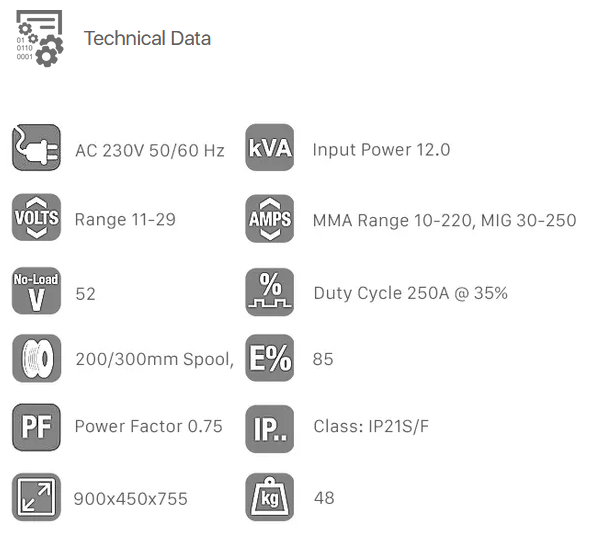

Technical Specifications:

-Wire: 0.6 – 1.0mm

-Voltage: AC 230V – 50/60 HzÂ

-kVA Input Power 10.4

-Volts Range 11 – 29

-Amps Range MMA: 10 – 250

-Amps Range MIG: 25 – 250

-Duty: 250A @ 35%

-Power Factor: 0.75

-E%: 85

-No-Load V: 54

-Class: IP21S/F

-Dimensions(mm): 880 x 296 x 316Â

-Weight(kg): 55

Suitable for:

Solid Wire

Steel up to 7.9mm (5/16″)

Stainless Steel up to 7.5mm (5/16″)

Aluminium up to 9.5mm (3/8″)

Flux Cored Wire

Steel up to 4.8mm (3/16″)
