JEI MagSlot™ 20X Portable Magnetic Milling Machine 110v
€2,600.00 Excl. VAT
Description

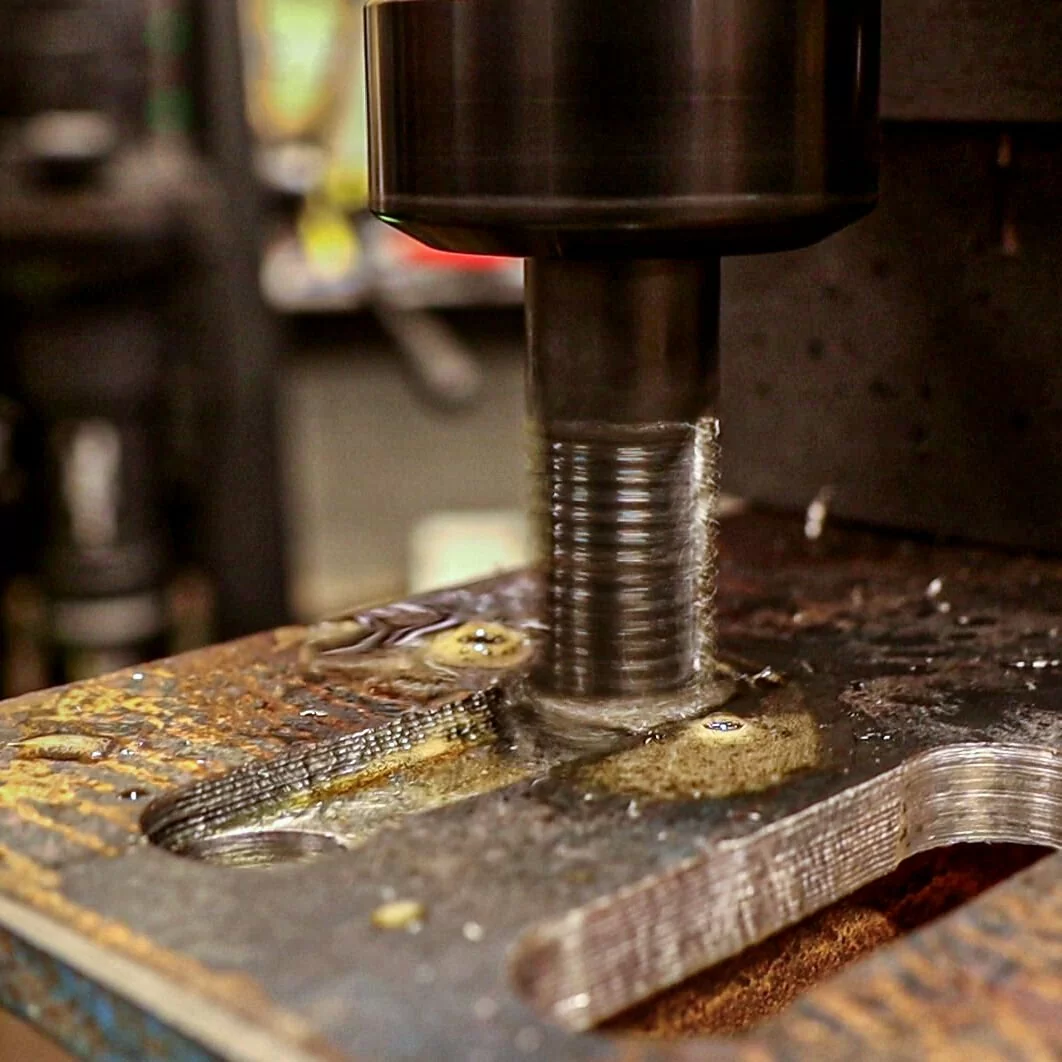

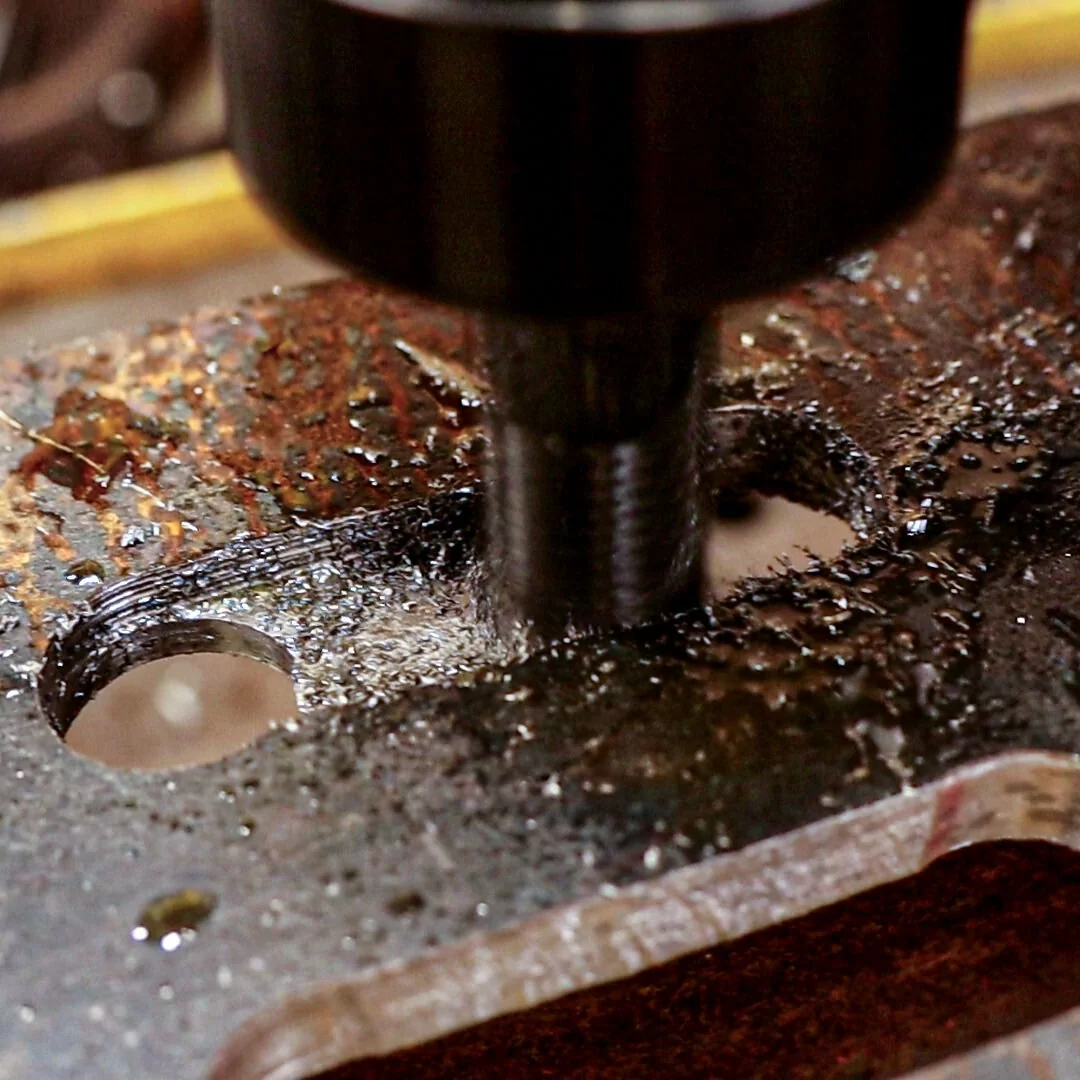

Introducing the Magslot™ 20X – the world’s first portable single-axis feed milling machine. This lightweight, compact tool makes it easy to create slots and elongate holes in steel. Weighing just 20kg, it’s highly portable and can be quickly magnetised to the workpiece, allowing you to efficiently tackle even the most difficult tasks. Experience the power of this innovative tool today.

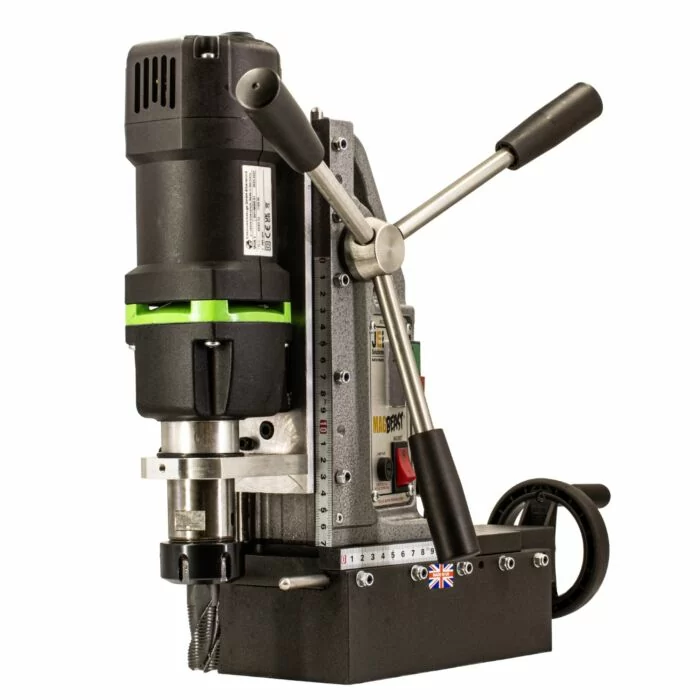

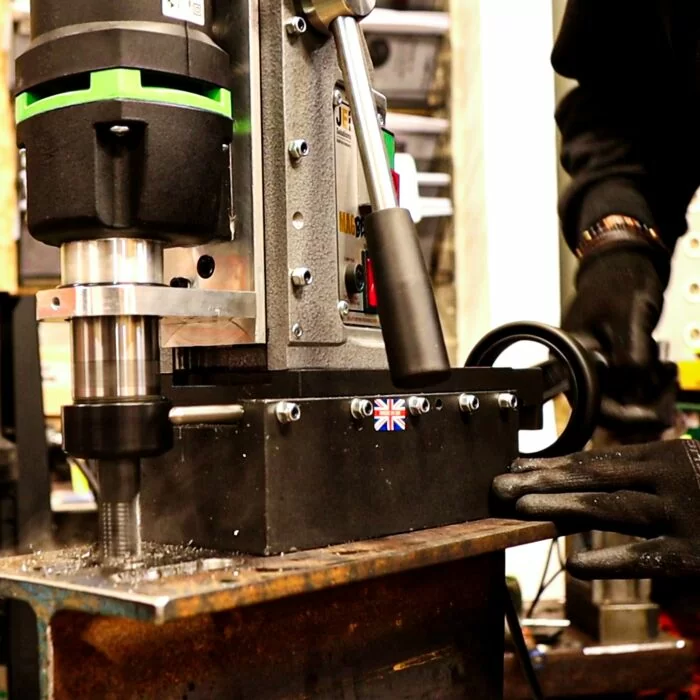

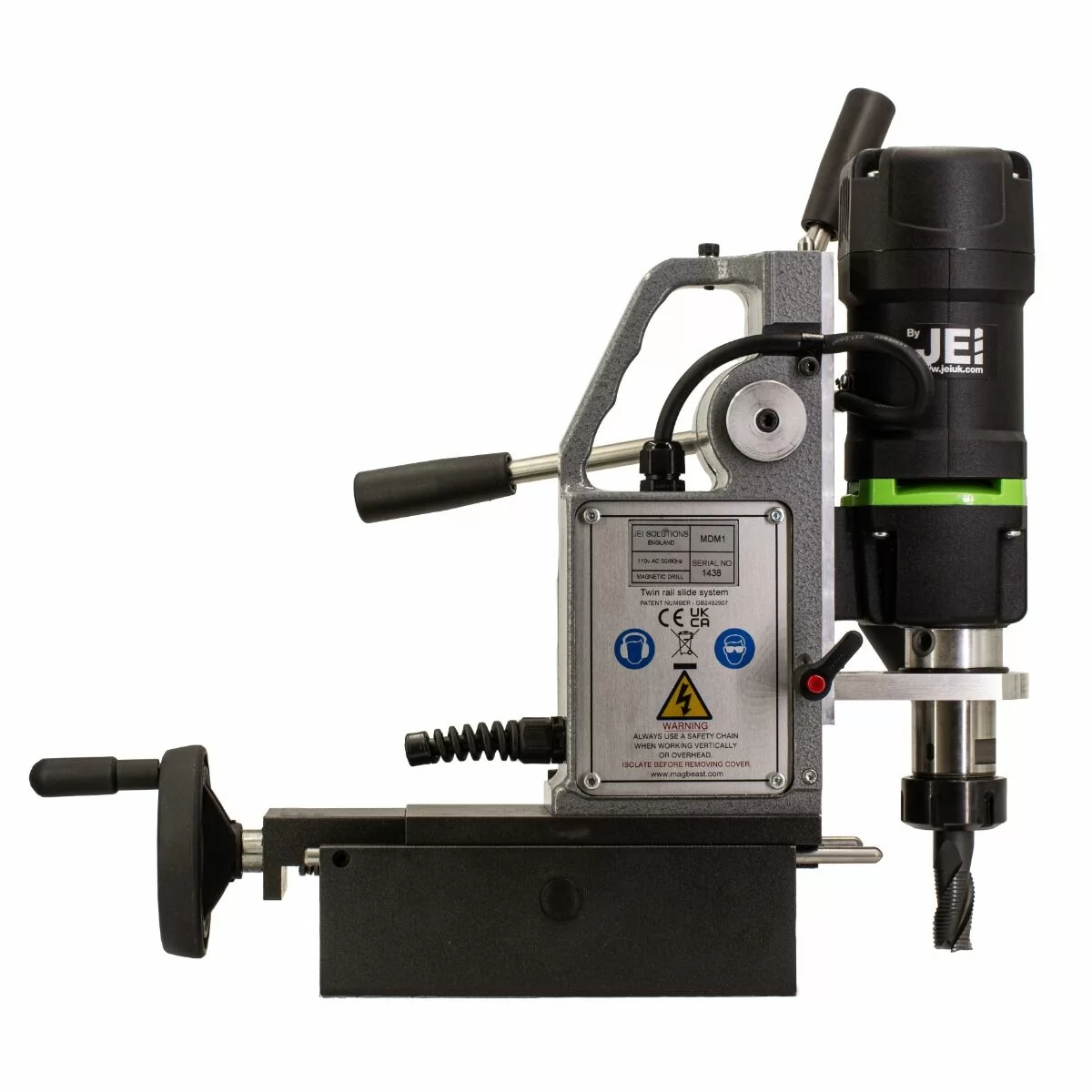

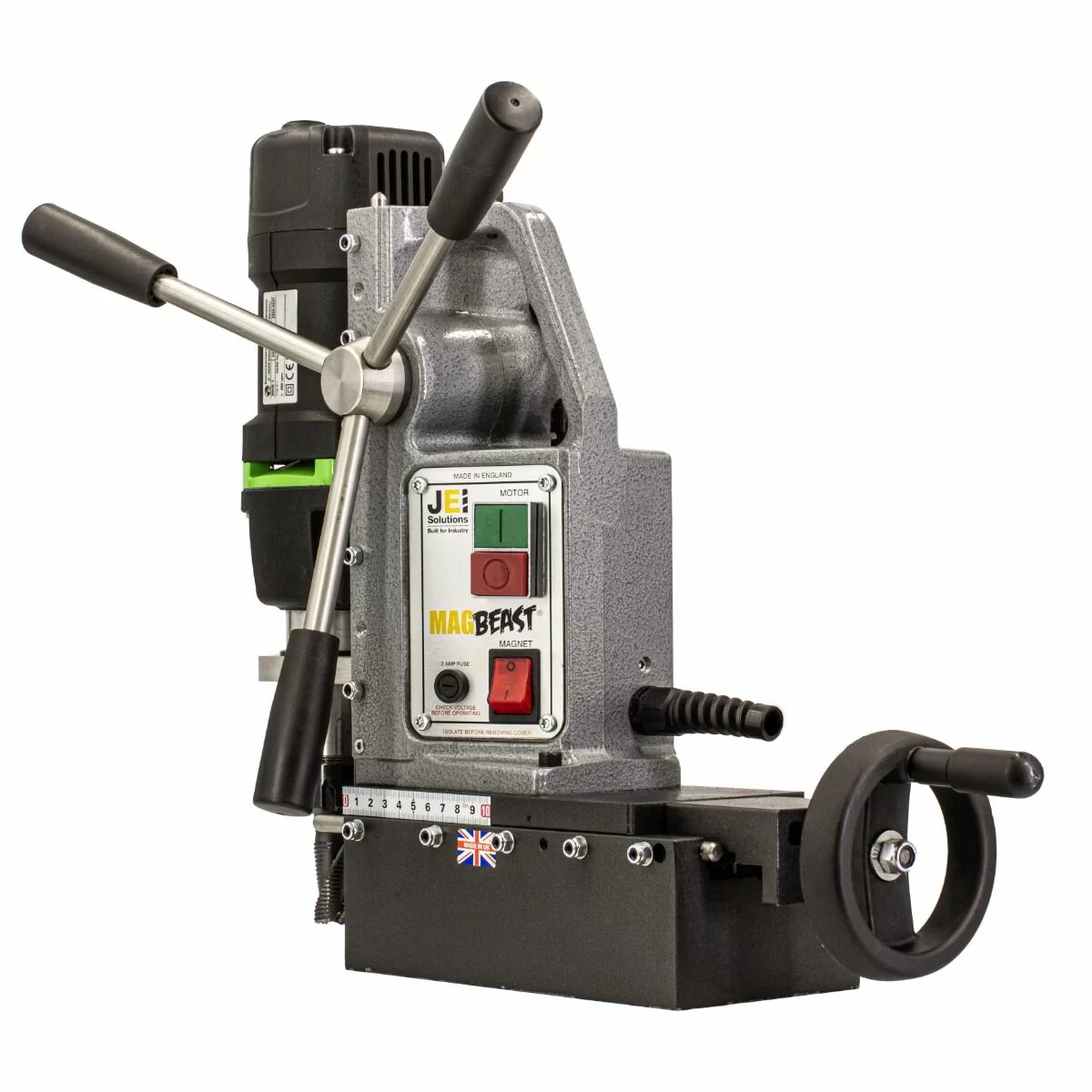

The MAGSLOT™ 20X by JEI is a unique, portable magnetic milling machine designed for on-site and workplace steel milling. Weighing only 20kg, it’s easy to transport and can be positioned precisely for efficient and steady cuts.
Key Features:
- Horizontal Single Axis Feed: Allows 90mm of milling travel per operation with patented slide rails for minimal vibration and steady cuts.
- Lightweight and Portable: At 20kg, it can be conveniently brought to the workpiece in any position.
- ER32 Milling Collet Chuck: Accepts end mills between M3-M20 Ø.
- Optional Annular Broach Cutter Holder: Converts the machine to a magnetic drill for cutting round holes up to 40mm Ø.
- Lockable Downward Motor Slide: Fixes the milling tool to the desired depth.
| SKU: | DRILLMAGSL |
|---|---|
| Condition | New |
| Brand | JEI |
| Model | MAGSLOT 20X |
| Motor Specification | 1100w |
| No Load RPM | 720 RPM |
| Maximum Cutting Diameter | 40mm |
| Machine Weight (kg) | 20.000000 |
| Width | 70mm |
| Length | 420mm |
| Magnet Dimensions | 215 mm x 118 mm |
| Magnetic Adhesion | 2500kg (1″ Plate) |
| Voltage | 110v, 220v |
|---|
