Parweld XTM 503I Synergic MIG Inverter Watercooled with 10m Interconnections
€2,900.00 Excl. VAT
Out of stock
Description

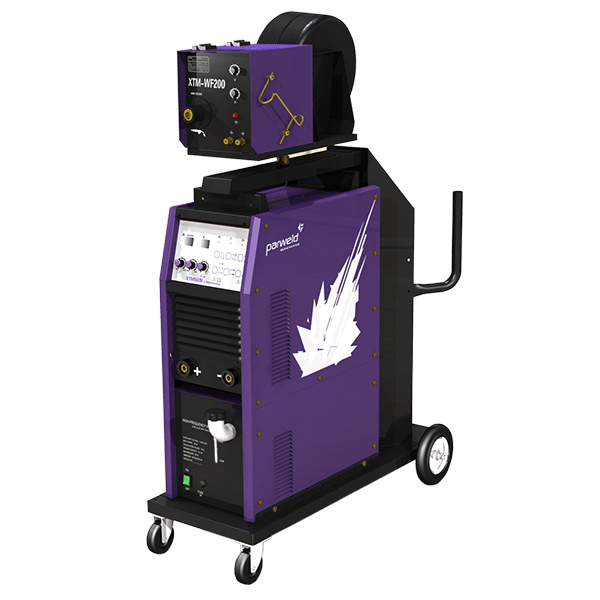

XTM 503I Synergic MIG Inverter (comes complete with torch, leads, regulator and watercooler with 10m interconnections)
The XTM 503I offers the large fabrication industries quality welding performance at a competitive price.
Synergic Control
The synergic control allows rapid machine setup saving time, and the infinite control allows the perfect combination of voltage and amperage.
Inverter technology delivers power savings over transformer based machines.
Flexible
The separate wire feed unit provides flexibility when working with large fabrications or where access is restricted.
Reliable Feeding
The 4 roll geared aluminium feed box ensures reliable feeding of 1.0mm and 1.6mm wires.
Ease of Use
The separate wire feeder carries all the controls, enabling easy fine tuning of the welding operation without having to return to the power source.
Professional three phase compact MIG machine complete with water cooler, suitable for industrial manufacturing and heavy fabrication.
Specs
Style-Separate
Machine Type- Inverter
Max Current -500A DC
Wire Feed Speed- 1-20m/min
Voltage -13-50V
Spool Size -300mm (15kg)
Feed Box- 4R
Wire Size- 0.8-1.6mm
Duty Cycle- 500A @ 60%
Input Voltage- 400V 3P
Min Fuse Rating- 32A
Input Current (Eff)- 41.8A
KVA- 27.5
Generator Size* -30 KVA
Dimensions (LxWxH mm) -1050 x 520 x 1140
Weight (kg)- 67
Features
•400V Three Phase
•500A @ 60% Duty Cycle
• 4 roll drive
• Synergic control
• Forced air fan cooling
• Stepless wire speed control
• Wire inching
• Gas purge
• Burn back adjustment
• Soft start adjustment
• Holds 15kg wire spools
• Holds full size gas cylinder
• Water cooled
• Variable inductance setting
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
