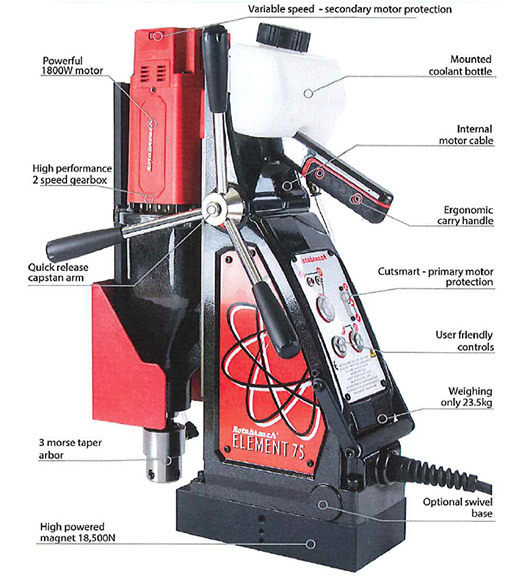

-For heavy duty operations the ‘Element 75’ is a must for drilling larger holes.
-Compact, durable and more portable than other larger machines.
-Suitable for drilling up to 75mm diameter by 75mm depth.
-The ‘Element 75’ offers forward and reverse functionality.
-The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear
-CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
-Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
-Internal cabling removed the risk of damage and downtime for your magdrill
-Internal cooling – keeping your mag drill cool and allowing you to drill for longer
-13mm drill chuck that can be used for twist drills.
-Powerful 1800w motor with a two speed mechanical gearbox
-Can be used to countersink up to 40mm*
|Model Number||Element 75/1 / Element 75/3|
|Motor Specification||110V 1800W / 230V 1800W|
|No Load RPM||Low Gear: 70 -180 RPMHigh Gear: 200-500 RPM|
|Max Hole Cutting Capacity||ø75 x 75mm Deep – 26mm with MT Drill|
|Overall Dimensions||Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard|
|Magnet Size||220mm x 114mm|
|Safety Features||Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch|
