Product Description
Description

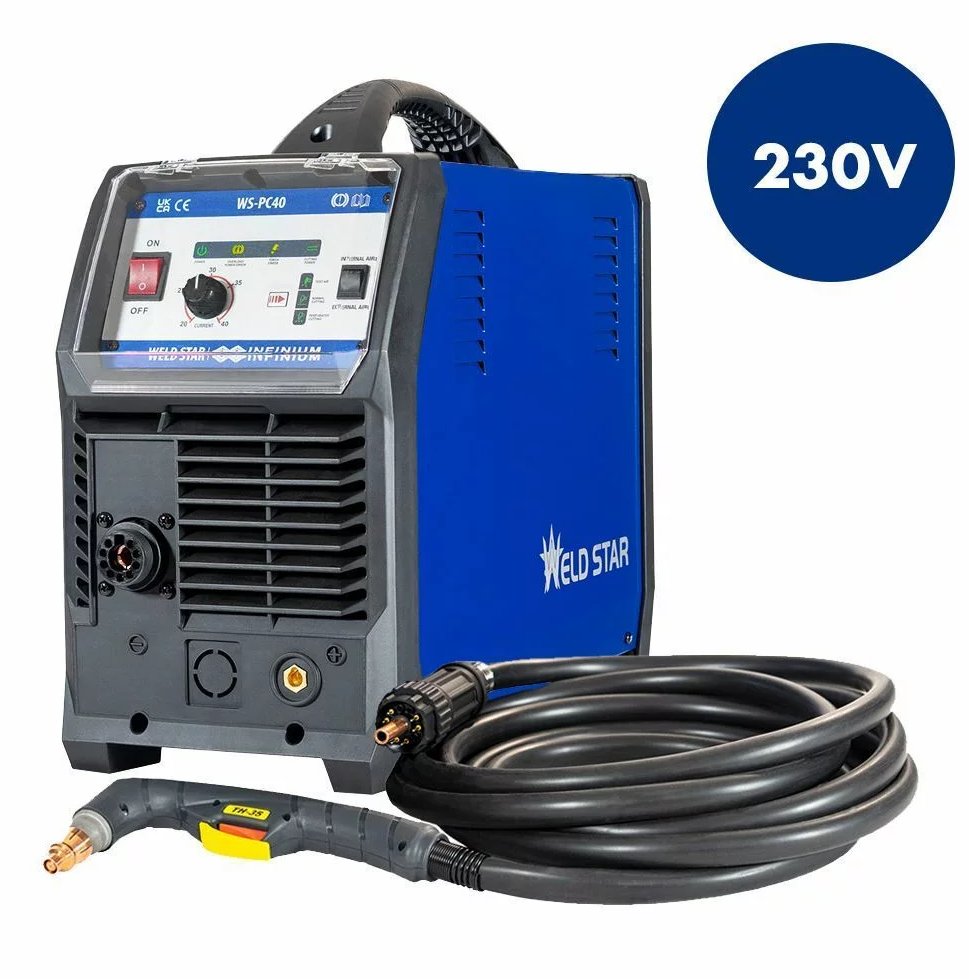

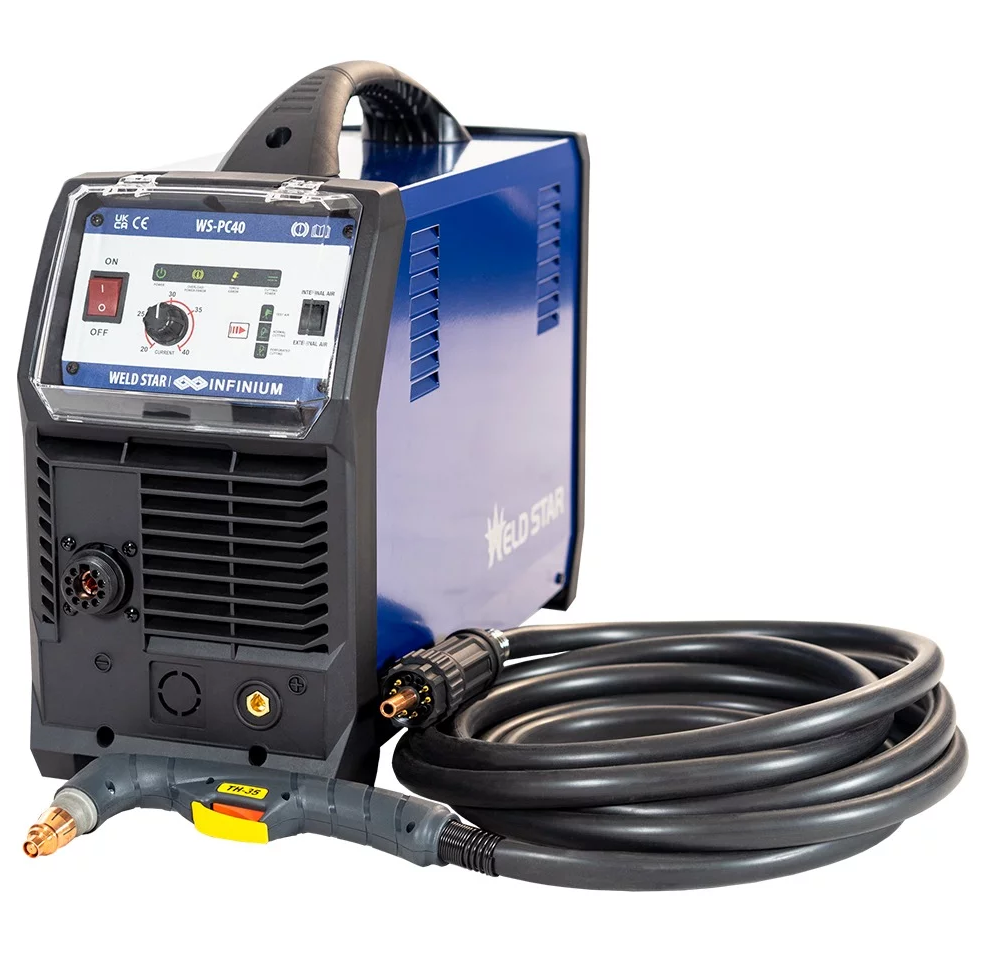

-The PC40 is a compact, lightweight and portable inverter based plasma cutting machine with a built in air compressor that offers excellent operator flexibility
-Advanced, high efficiency plasma systems that offer flexible portability along with smooth and precise cutting characteristics that is ideal when cutting steel, stainless, copper, cast iron as well as aluminium
-The Weld Star Infinium plasma range offers the flexibility of switching between the built in compressor or using your own workshop supplied compressed air
-Clean cut of 12mm and a severance cut of 16mm. Based on mild steel using workshop compressed air
-Auto pilot restart allows for faster restarting of the pilot arc which allows for uninterrupted cutting of grid or perforated type material
-Plasma cutting speeds can be up to 1.8 times faster when compared with oxyacetylene cutting
-Advanced non HF pilot arc ignition via the supplied plasma cutting torch
-The single carry handle offers excellent portability when working or maneuvering on site or in the workshop

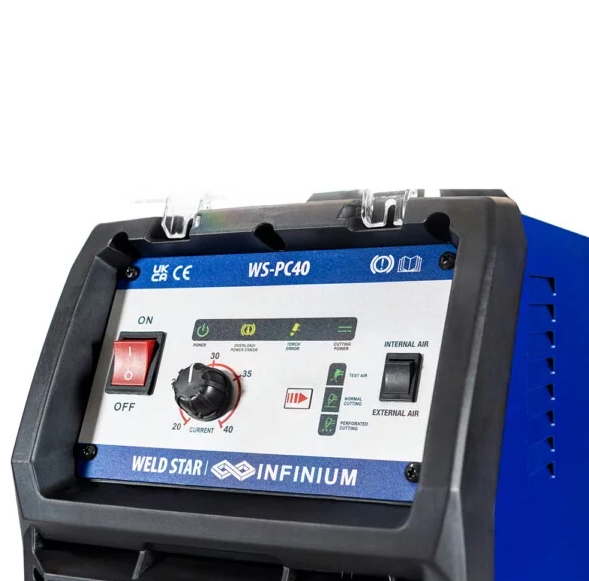

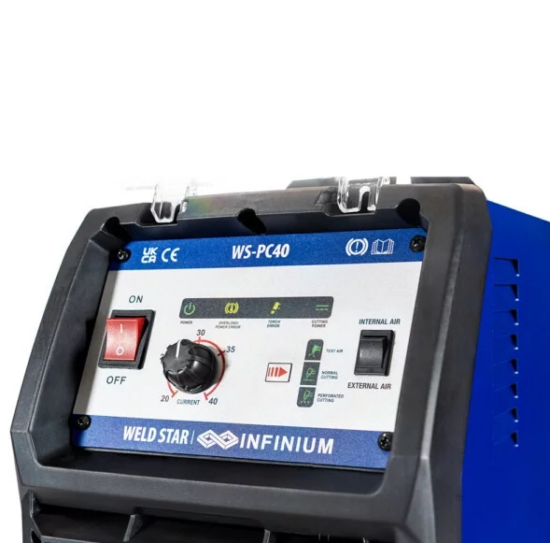

-User friendly operator control panels
-Generator friendly (with built-in AVR)
-Optional circle cutting guide kit available
-5 year warranty
TECHNICAL DATA – WS-PC40-DV
Input Voltage | 110V AC ±15% 50/60Hz | 230V AC ±15% 50/60Hz | ||
Ieff (A) | 20.4 | 16 | ||
Input Power (kVA) | 3.8 | 5.2 | ||
Cutting Current Range (A) | 20-30 | 20-40 | ||
No-Load Voltage (V) | 400 | |||
Duty Cycle @ 40°C | 30A@35% | 40A@35% | ||
22A@60% | 36A@60% | |||
20A@100% | 30A@100% | |||
Internal Air | External Air | Internal Air | External Air | |
Clean Cut (mm) | 5 | 6 | 10 | 12 |
Severance Cut (mm) | 6 | 8 | 14 | 16 |

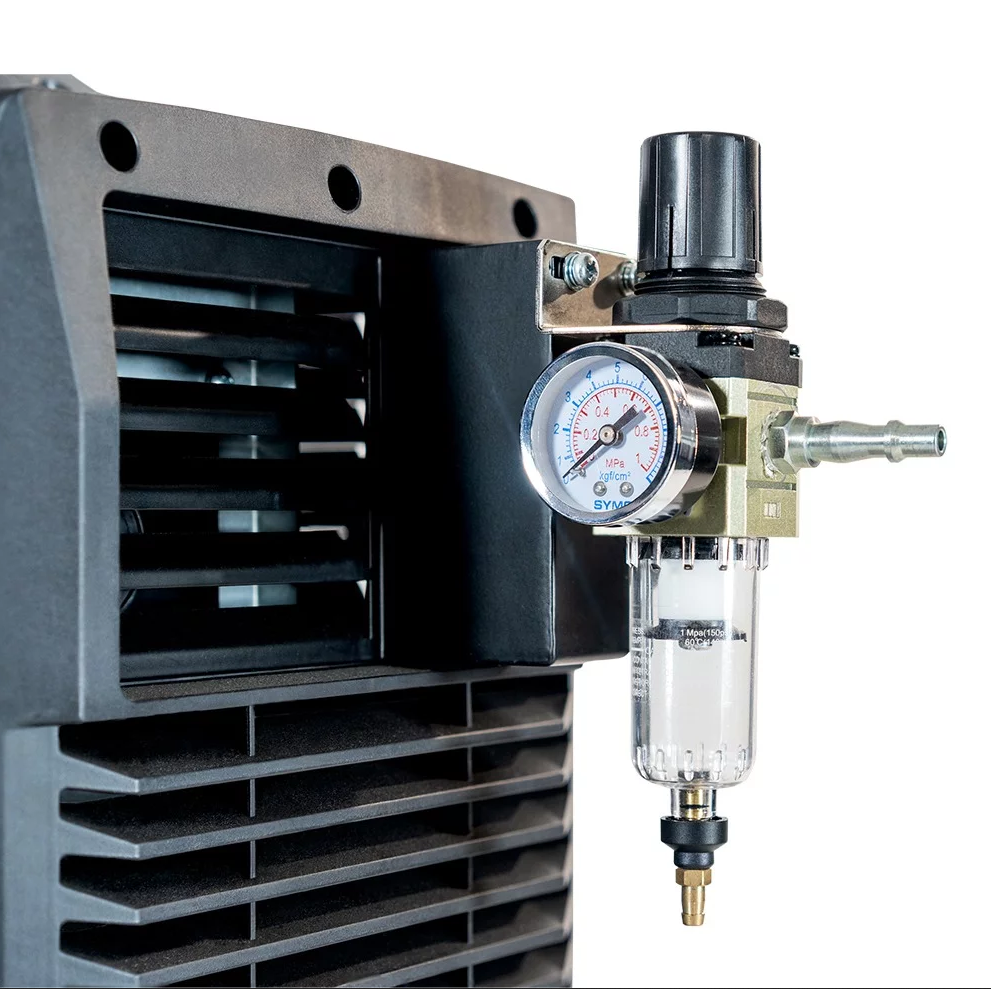

Min/Max air pressure (external) | 5 Bar (75psi) / 6 Bar (87psi) | |||
Minimum gas flow (external air) | 4.5CFM 120 Ltr/min | |||
Efficiency (%) | 85 | |||
Idle State Power (w) | 11 | |||
Power Factor | 0.99 | |||
Protection/Insulation Class | IP23S/H | |||
Dimensions (LxWxH mm) | 610 X 215 X 420 | |||
Weight (Kg) | 21 |
