Description
Table Accuracy
Hole Diameter: | 16 + 0.05 / -0 mm |
Hole Spacing: | 50 ±0.025 mm |
Table Flatness: | ±0.125 mm per 600 x 600 mm |
Plate Thickness: | 12 ±0.12 mm |
Tabletop Finish: | Nitrided (Heat-Treated) |
Surface Hardness: | HV 750 |
Coefficient of Friction: | 0.37 |
Top Plate
Material: | P20 |
Hardness: | HV750 |
Side Plate
Material: | Q345B |
Hardness: | HV550 |
Precision ground steel plates, with CNC machined Ø16 mm holes in a 50 mm grid pattern for locating, positioning and mounting BuildPro clamps and accessories.
Plates can be reconfigured to expand the width of the table for larger projects.

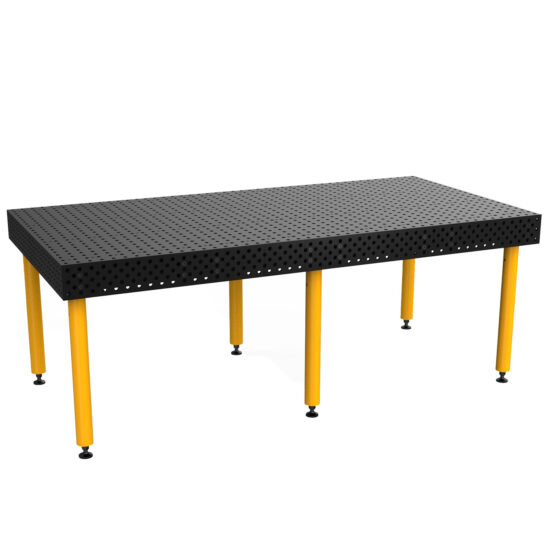

Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.
REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.125 mm per 600 x 600 mm
Hole spacing: 50 ±0.025 mm
Hole diameter: 16 + 0.05 / -0 mm
Plate thickness: 12 ±0.12 mm
Tabletop Side Height
The new five-sided tables feature a 138 mm side plate combined with the top plate to create a 150 mm height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.
Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
