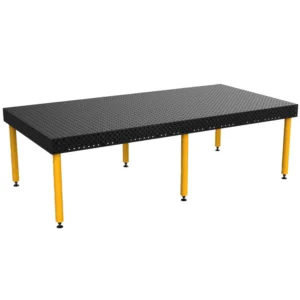

Buildpro Alpha 16 Welding Tables, 2000 x 1000mm

From 3,950.00 Excl. VAT

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 16 mm diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

SKU: N/A Category: Brand:
BuildPro

Description

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 16 mm diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Table Accuracy

Hole Diameter: 16 + 0.05 / -0 mm
Hole Spacing: 50 ±0.025 mm
Table Flatness: ±0.125 mm per 600 x 600 mm
Plate Thickness: 12 ±0.12 mm
Tabletop Finish: Nitrided (Heat-Treated)
Surface Hardness: HV 750
Coefficient of Friction: 0.37

Top Plate

Material: P20
Hardness: HV750

Side Plate

Material: Q345B
Hardness: HV550

Precision ground steel plates, with CNC machined Ø16 mm holes in a 50 mm grid pattern for locating, positioning and mounting BuildPro clamps and accessories.

Plates can be reconfigured to expand the width of the table for larger projects.

Heavy Duty Leveling Feet ensure proper leveling of the table on uneven surfaces.

REVERSIBLE Self-Locating Top & Side Plates

All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.

Table Accuracy

Table flatness: ±0.125 mm per 600 x 600 mm
Hole spacing: 50 ±0.025 mm
Hole diameter: 16 + 0.05 / -0 mm
Plate thickness: 12 ±0.12 mm

Tabletop Side Height

The new five-sided tables feature a 138 mm side plate combined with the top plate to create a 150 mm height.

Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

Plate Mounting Detail for Side Plates

Side Plates also use self locating bushing system.



Advantages of Buildpro tables over other brands

  • Our plates are modular on a welded frame
  • Plates can be reversed to use both sides (Basically a 2 in 1 table)
  • The table frame is more rigid than our competitors frame because our frame has more material and uses full square profile in the tubing. The competitions tables are basically only forming 3 sides of a square, so it cannot have the same resistance to torsional (twisting) forces.
  • The welded frame of our competitors table and nitriding of the entire table creates distortion. The distortion is strongest in the corners above the legs, which is very important since those areas are used the most
  • Buildpro plate system is flatter, because they sit on top of a machined frame.
  • Plates can slide out if needed to support wider material

Finish

Nitrided

Legs

6 X Heavy duty 710mm legs, 6 x Adjustable 508 – 762mm legs, 6 x Adjustable 508 – 762mm legs + Castor
